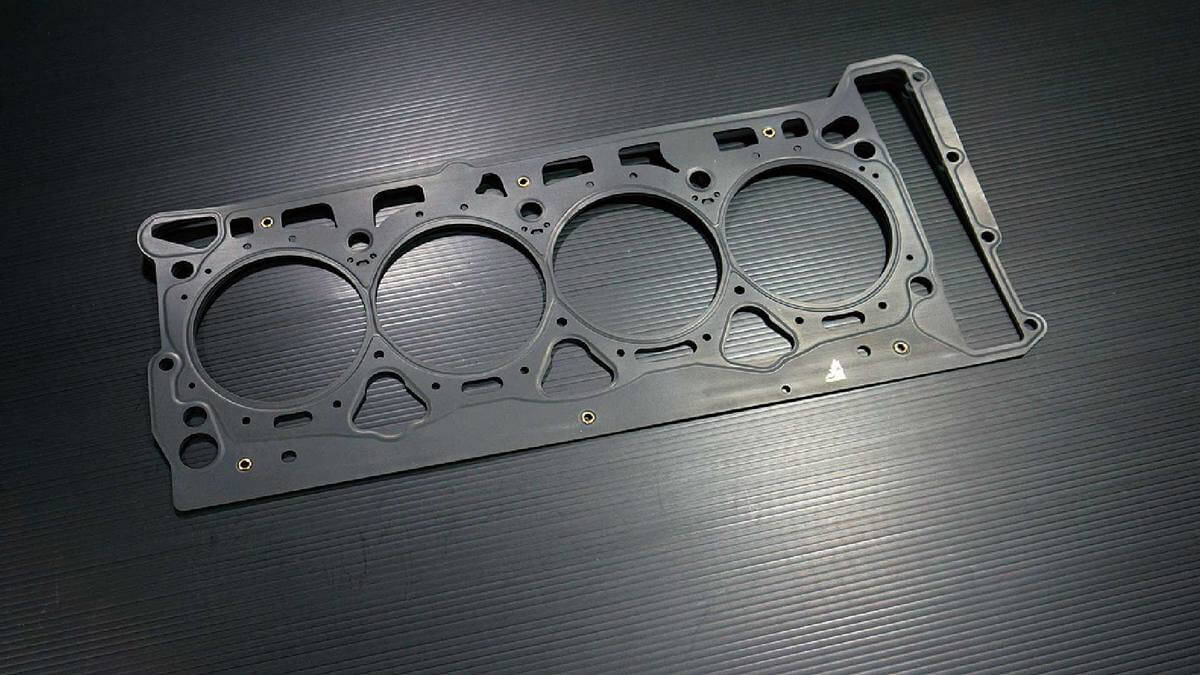

SIRUDA_Cylinder Head Gasket_VOLKSWAGEN_BZB(EA888)SIRUDA_Cylinder Head Gasket_package
  • Multi-layer steel - Provide the best ductility, so that the cylinder gasket has better resilience and corrosion resistance.
  • Patented rubber coating - Provide the best temperature resistance, extremely excellent for high-temperature application.
  • Reinforced cylinder bore design - provides the best sealing effect when the engine is running.
  • Quality assurance - All products complied with ISO9001:2015 international quality standards.
BORE
THICKNESS
BZB(EA888)


BZB(EA888)



Multi-layer composite steel-corrosion resistance, high elongation

The gasket is composed of multi-layer composite steel, which allows the cylinder mattress sheet to have resilience and corrosion resistance, and has better ductility; and add HR-180 to the surface of this multi-layer composite steel Coating can better seal the engine room with high horsepower.

BZB(EA888)
BZB(EA888)
BZB(EA888)
BZB(EA888)
BZB(EA888)




Cylinder gasket type-STOPPER

STOPPER is mainly between the multi-layer composite steel around the cylinder bore, so that when the engine is running, it provides high sealing effect; this STOPPER is most suitable for use around the combustion chamber of automobile engines to achieve the best sealing effect.

BZB(EA888)



Rubber coating material-high temperature resistance, high sealing effect

SIRUDA's patented rubber coating material has the characteristics of high temperature resistance and high sealing effect. For use in car models with high running horsepower requirements, it will make the engine run more smoothly and in a high-speed engine environment The medium can fully and effectively exert its high temperature resistance sealing effect.

BZB(EA888)



Rubber coating material inspection-SGS

According to the results of SGS standard inspection, the rubber coating material HR-180 used by SIRUDA has high water resistance, oil resistance, immobility resistance, high heat oil resistance and heat resistance, making it suitable for use in automobile engine cylinder mattress sheets or It is the inlet and exhaust manifold gaskets that can better show their characteristics and effects, making the engine running more stable.

BZB(EA888)



Comply with EU REACH environmental inspection regulations

The rubber coating used in SIRUDA's engine cylinder gaskets is fully compliant with the REACH standard set by the European Union, which can ensure the safety of this material.

Specification
  • BORE
    • Ø83.00mm
  • TYPE
    • STOPPER
  • THICKNESS
    • 1.00mm
  • PART No.
    • ICH200420-RE1
  • OEM No.
    • 06H 103 383 AD
  • MATERIAL
    • Metal
Applicable Models
  • BRAND
    • VOLKSWAGEN
  • ENGINE
    • BZB(EA888)
  • Applicable Models
    • PASSAT (3C2) 1.8 TSI
    • GOLF GTI/GT R
    • A3
    • A4 TFSI 1.8T
    • A4 TFSI 2.0T
  • YEARS
    • 2007~2010
